Structural Features:

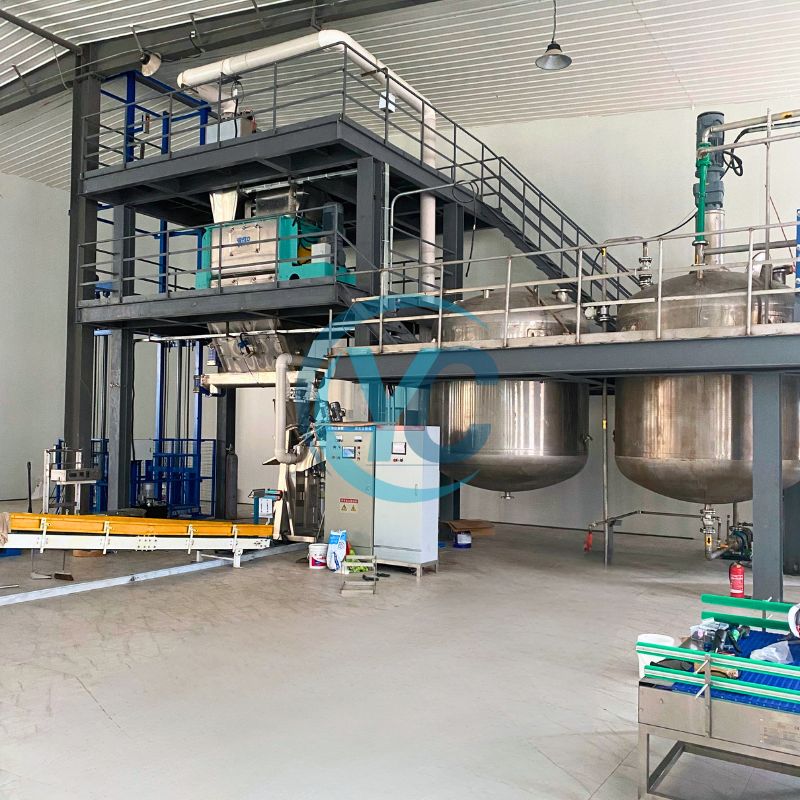

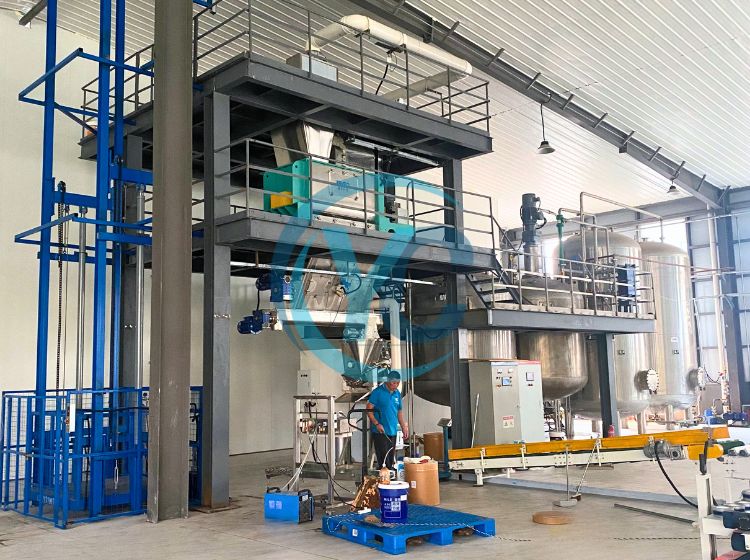

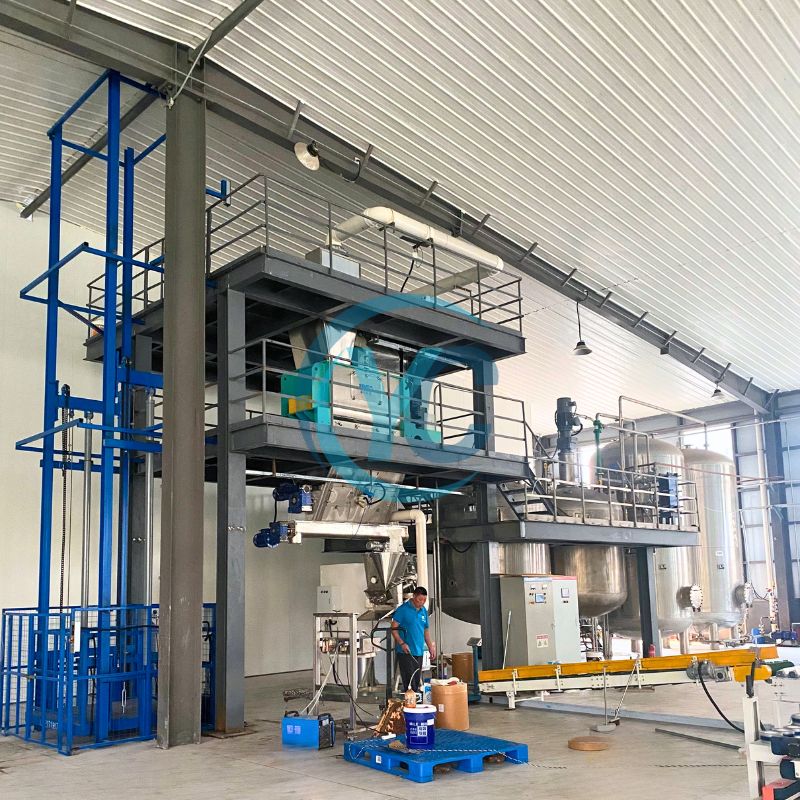

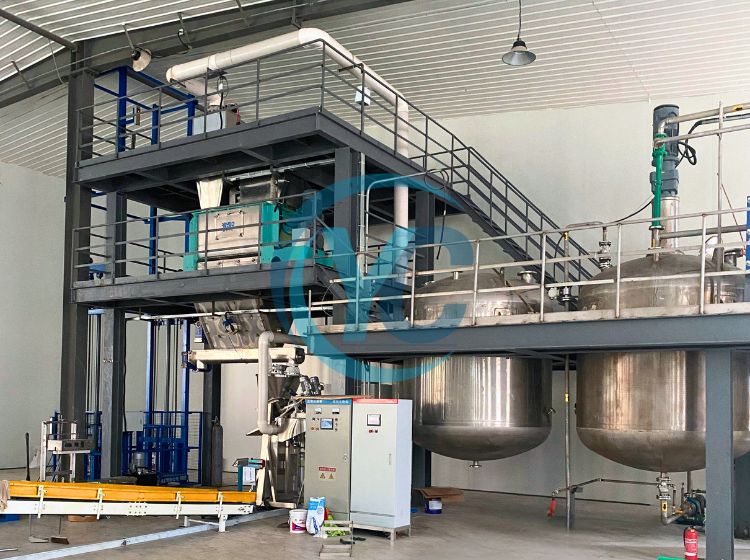

This is a dual production line system. One line is dedicated to powder water soluble fertilizer production.
The other line is designed for liquid water soluble fertilizer.
Both lines operate efficiently and simultaneously.
This enables synchronized production of powder and liquid fertilizers.
The overall layout is compact and well-organized.
The factory height requirement is 8 meters.
Production Line Configuration:
To meet the standard configuration requirements of water soluble fertilizer plants,
this solution offers a complete equipment list:
This integrated continuous production line is specially designed for nitrogen,
phosphorus, and potassium (NPK) powder fertilizers.
Performance characteristics：
1. The system uses artificial ingredients, less investment, small footprint, flexible production.
2. The main body adopts three-dimensional structure closed design,
quick loading link, less storage material, no blockage, easy to clean.
3. Equipped with dust removal facilities, dust-free packaging,
in line with environmental assessment requirements.
4. Optional automatic packaging, packing, palletizing equipment.
5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion
Process flow

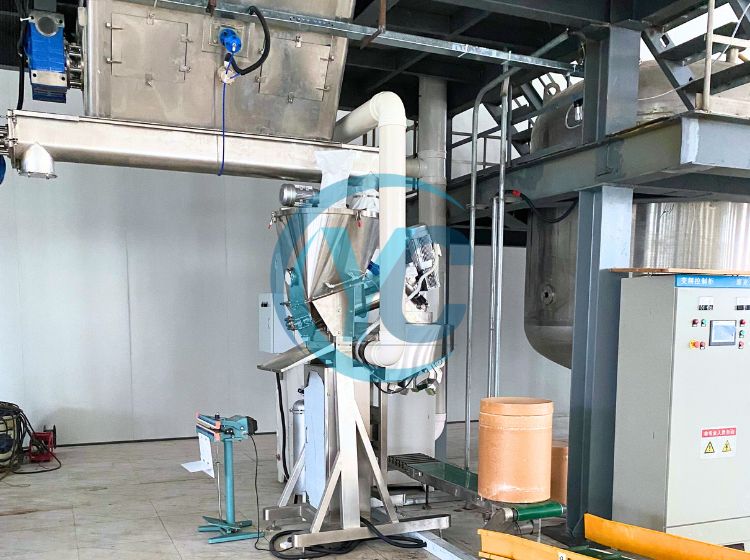

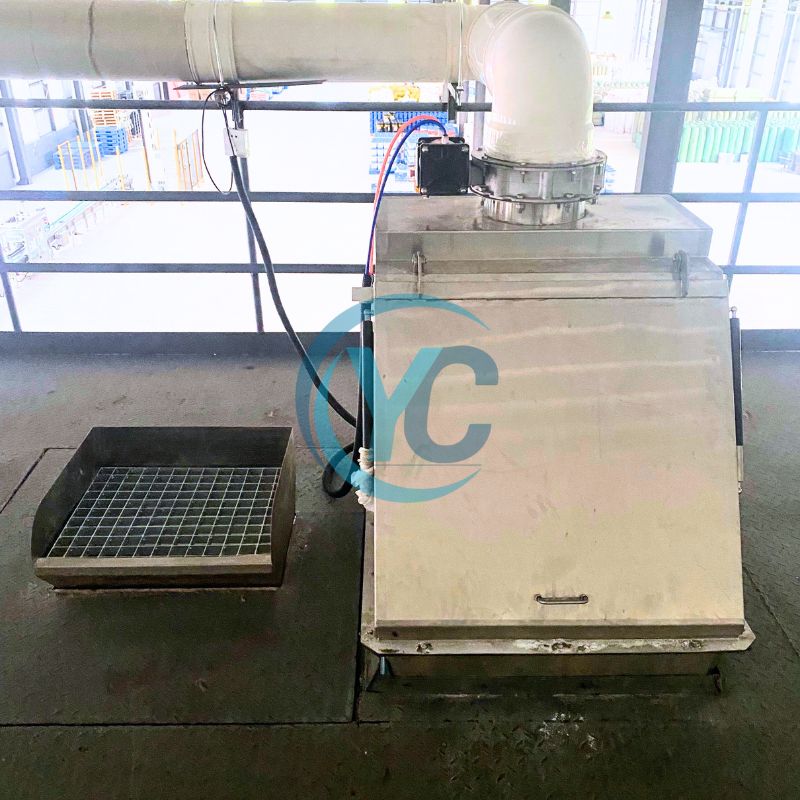

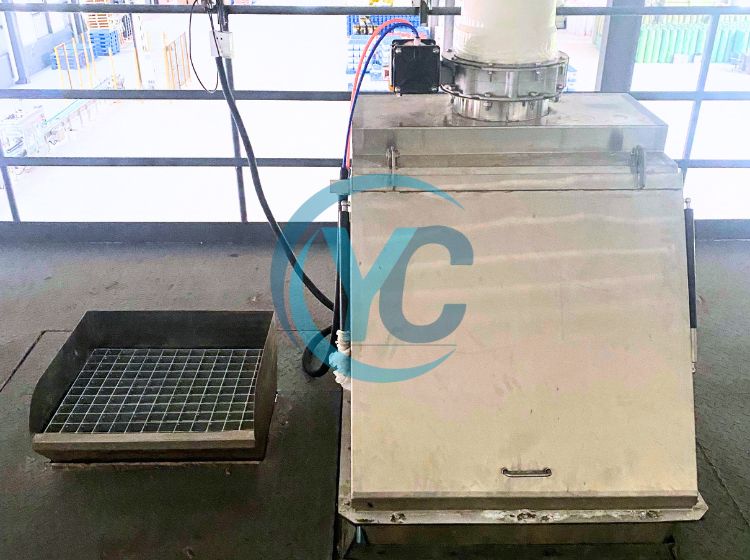

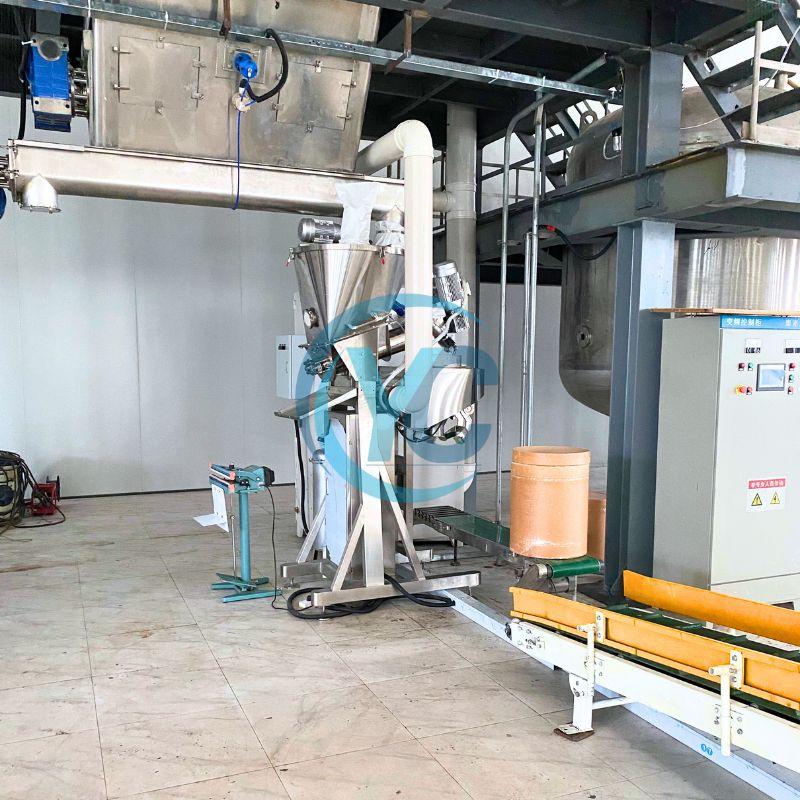

lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -
finished product silo -- powder packing scale -- sealing and conveying -- packing and packing (optional) -- palletizing (optional)
