General Description:

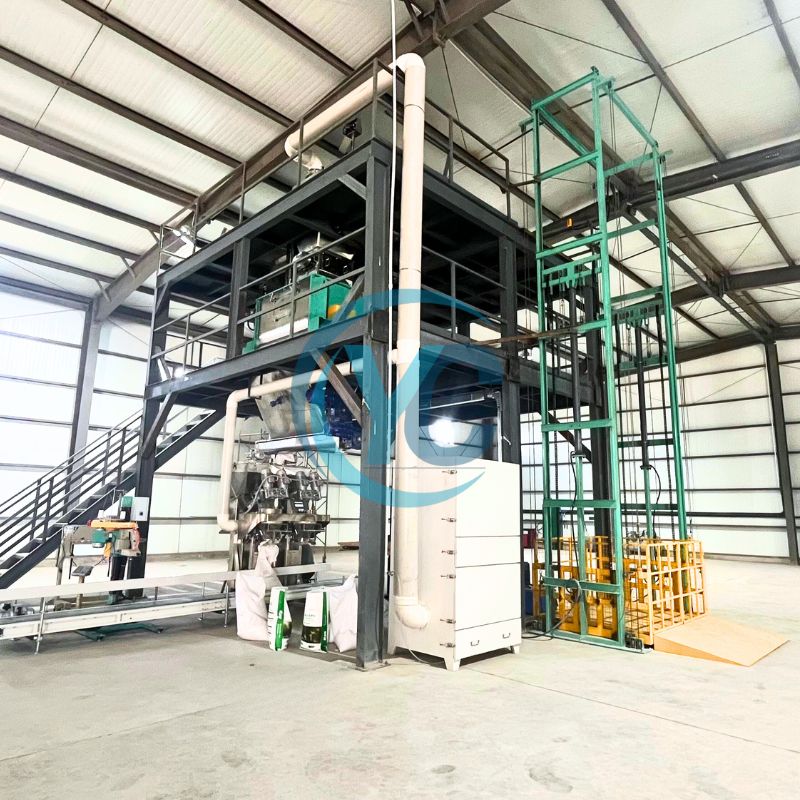

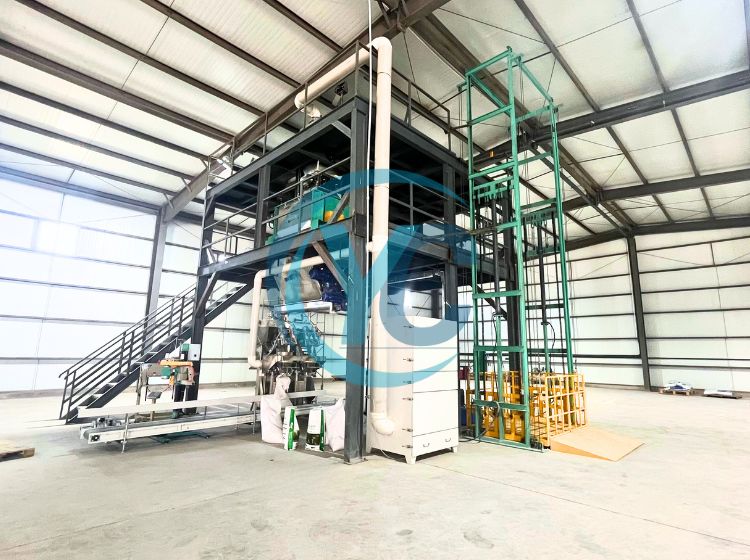

This semi-automatic powder water-soluble fertilizer production line adopts a vertical tower design with a three-layer platform.
The production flow follows a top-down sequence, including manual feeding, crushing and mixing, and final packaging— ensuring smooth and efficient operation.
The entire line features a compact layout and a small footprint, perfectly suitable for standard industrial workshops
with a height of 8 meters or more.
It integrates multiple processes into one streamlined system, supporting standardized and continuous production.
Equipment Configuration List

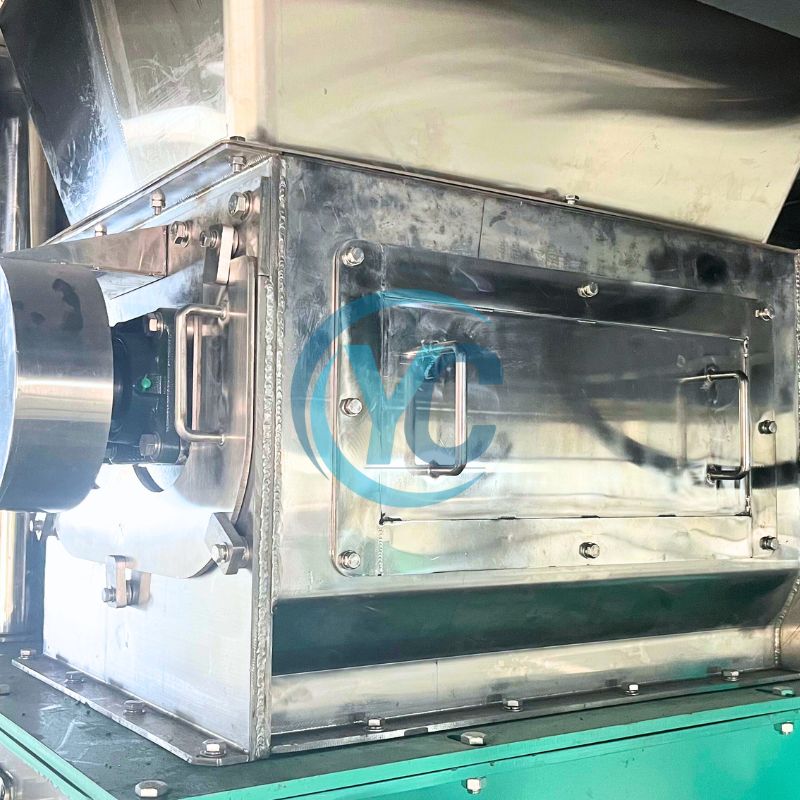

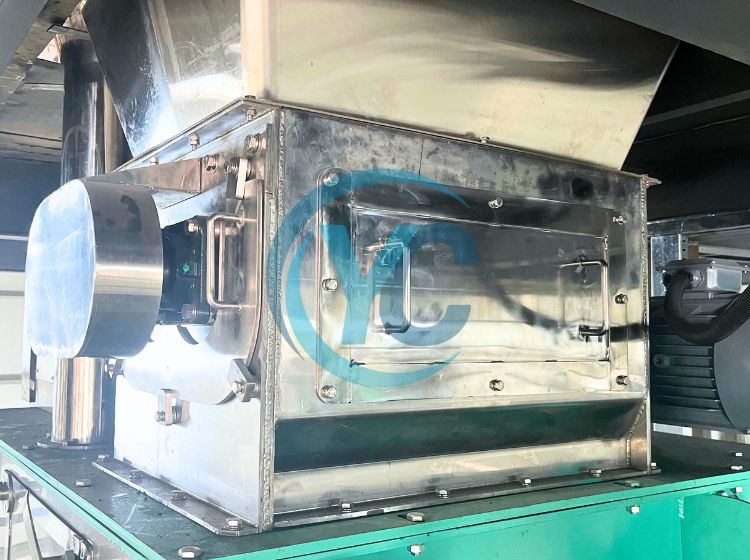

Urea Crusher for Small Granules — 1 unit
Caking Breaker for Lumpy Materials — 1 unit
Pulse Dust Collector with Piping System — 1 unit

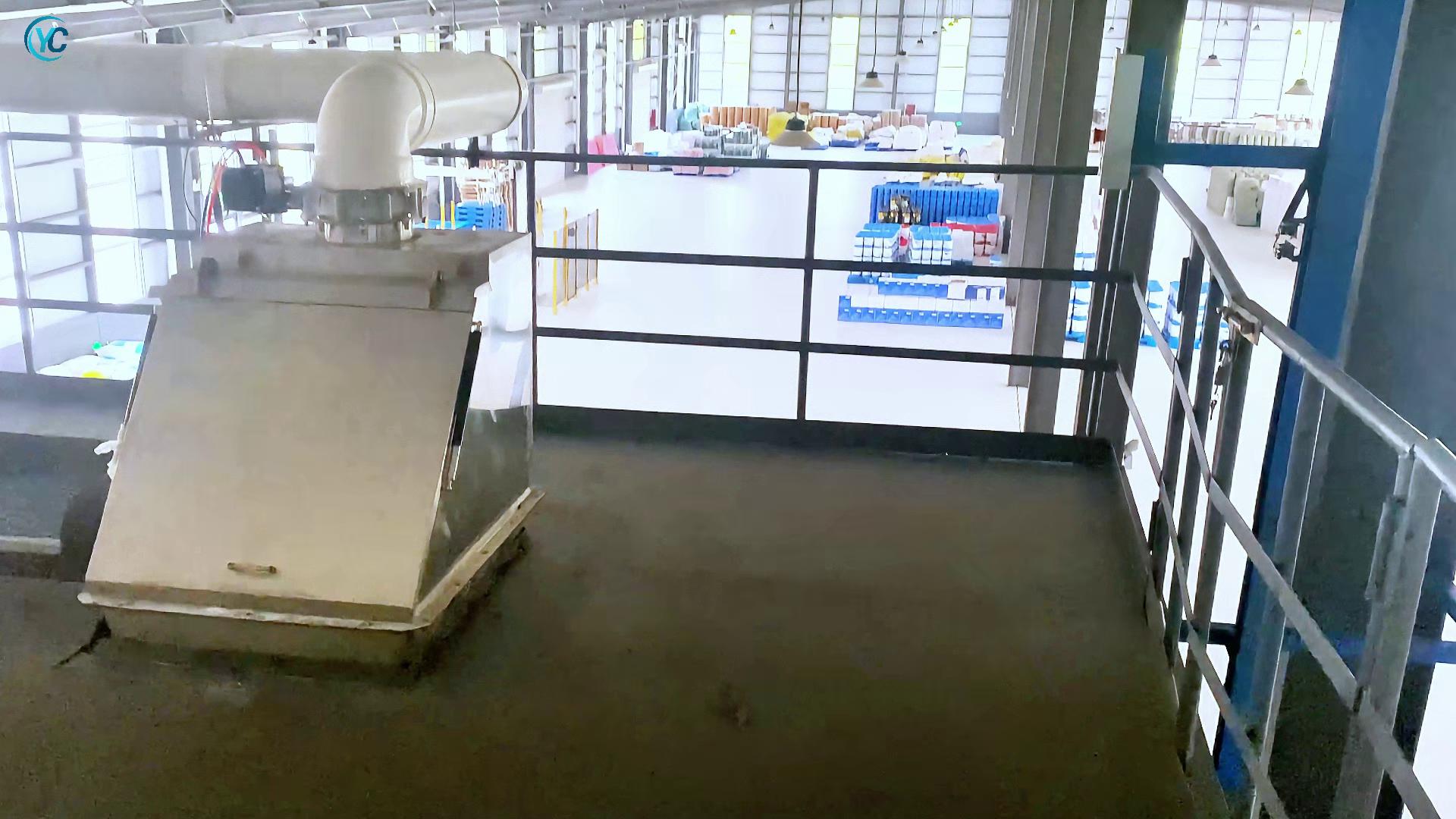

Dust-Free Feeding Station — 1 unit
Trace Element Feeding Port — 1 unit

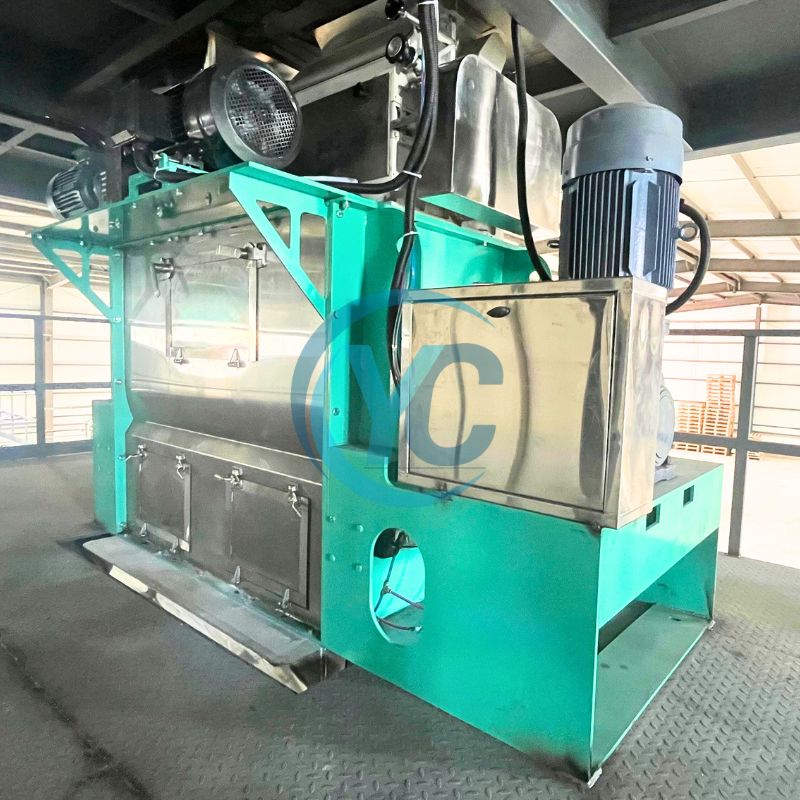

Horizontal Double Ribbon Mixer — 1 unit
Storage Hopper with Screw Discharger — 1 set
Double-Station Powder Packaging Machine — 1 unit
Plastic Film Heat Sealing Machine — 1 unit
Performance characteristics：
1. The system uses artificial ingredients, less investment, small footprint, flexible production.
2. The main body adopts three-dimensional structure closed design,
quick loading link, less storage material, no blockage, easy to clean.
3. Equipped with dust removal facilities, dust-free packaging,
in line with environmental assessment requirements.
4. Optional automatic packaging, packing, palletizing equipment.
5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion
Process flow

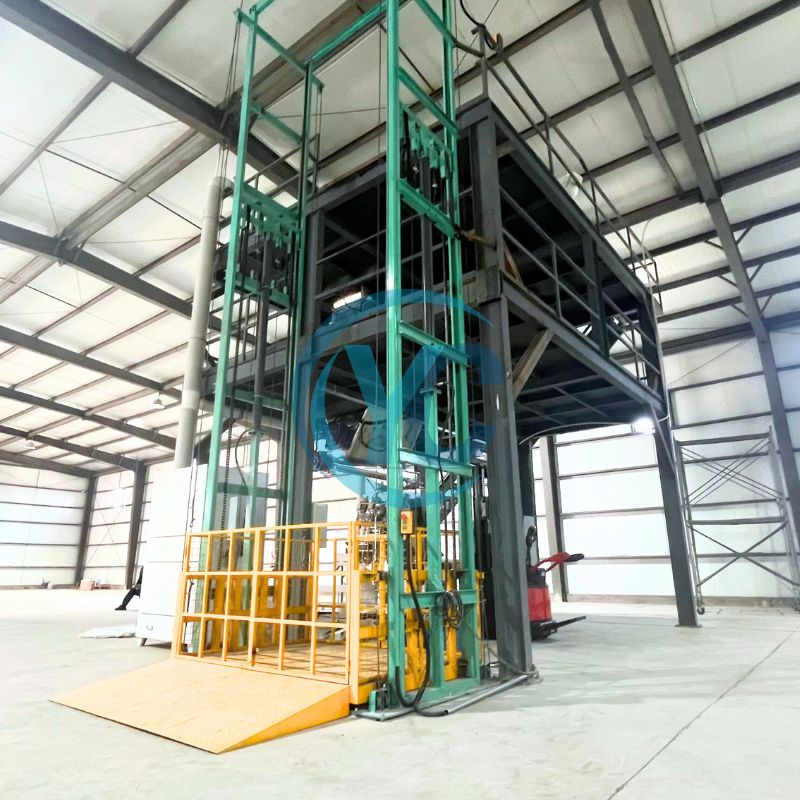

lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -
finished product silo -- powder packing scale -- sealing and conveying -- packing and packing (optional) -- palletizing (optional)
